N Channel Transistor Description

The 18N20X uses advanced Plane technology
to provide excellent Rds(on), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application.
General Features
Vds = 200V Id = 18A
Rds(on) < 120mQ @ Vgs=10V

Package Marking and Ordering Information

Product ID	Pack	Marking	Qty(PCS)
18N20P	TO-220	18N20P XXX YYYY	1000
18N20F	TO-263	18N20F XXX YYYY	1000

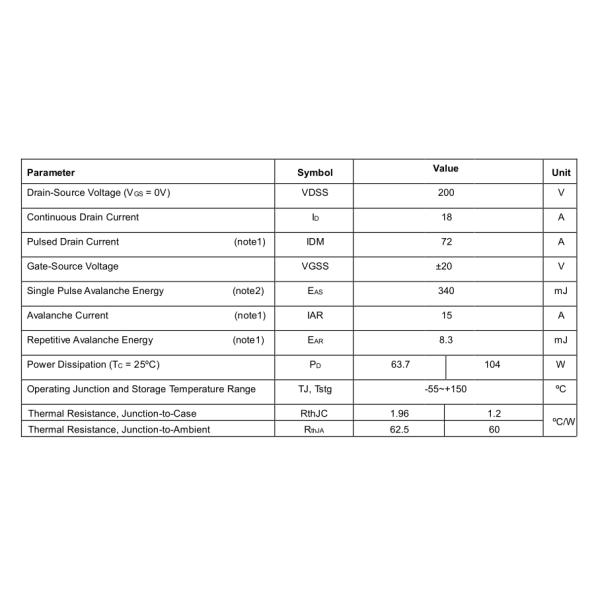

Absolute Maximum Ratings Tc=25°C unless otherwise noted

Enhancement Mode N Channel Transistor / Logic Mosfet Switch Surface Mount Package
200V N-Channel Enhancement Mode MOSFET

Pulse Test: Pulse width < 300^s, Duty Cycle < 1 %Ias = 15A, Vdd = 50V, Rg = 25 n, Starting Tj = 25 °C

Enhancement Mode N Channel Transistor / Logic Mosfet Switch Surface Mount Package

TO-252 Package Outline

Enhancement Mode N Channel Transistor / Logic Mosfet Switch Surface Mount Package

DIMENSIONS ( unit : mm )

Symbol	Min	Type	Max	Symbol	Min	Typ	Max
A	2.22	2.30	2.38	A1	0.46	0.58	0.93
b	0.71	0.79	0.89	b1	0.90	0.98	1.10
b2	5.00	5.30	5.46	c	0.20	0.40	0.56
D1	5.98	6.05	6.22	D2	--	4.00	--
E	6.47	6.60	6.73	E1	5.10	5.28	5.45
e	--	2.28	--	e1	--	4.57	--
Hd	9.60	10.08	10.40	L	2.75	2.95	3.05
L1	--	0.50	--	L2	0.80	0.90	1.10
w	--	0.20	--	y	0.20	--	--

TO-220-3L Package Information
Enhancement Mode N Channel Transistor / Logic Mosfet Switch Surface Mount Package

Symbol	Dimensions In Millimeters		Dimensions In Inches
Symbol	Min.	Max.	Min.	Max.
A	4.400	4.600	0.173	0.181
A1	2.250	2.550	0.089	0.100
b	0.710	0.910	0.028	0.036
b1	1.170	1.370	0.046	0.054
c	0.330	0.650	0.013	0.026
cl	1.200	1.400	0.047	0.055
D	9.910	10.250	0.390	0.404
E	8.9500	9.750	0.352	0.384
E1	12.650	12.950	0.498	0.510
e	2.540 TYP.		0.100 TYP.
el	4.980	5.180	0.196	0.204
F	2.650	2.950	0.104	0.116
H	7.900	8.100	0.311	0.319
h	0.000	0.300	0.000	0.012
L	12.900	13.400	0.508	0.528
L1	2.850	3.250	0.112	0.128
V	7.500 REF.		0.295 REF.
①	3.400	3.800	0.134	0.150

O-263-2L Package Information
Enhancement Mode N Channel Transistor / Logic Mosfet Switch Surface Mount Package

SYMBOL	INC	HIES	MILLIM	ETERS	NOTIES
SYMBOL	MIN	MAX	MINI	MAX	NOTIES
A	0.170	0.180	4.32	4.57
A1	-	0.010	-	0.25
b	0.028	0.037	0.71	0.94
b2	0.045	0.055	1.15	1.40
c	0.018	0.024	0.46	0.61
c2	0.04\|8	0.055	1.22	1.40
D	0.350	0.370	8.89	9.40
D1I	0.315	0.324	8.01	8.23
E	0.395	0.405	10,04	10.28
E1	0.310	0.318	7.88	8.08
e	0.100	BSC.	2.54	BSC.
L	0.580	0.620	14.73	15.75
L1I	0.090	0.110	2.29	2.79
L2	0.045	0.055	1.15	1.39
L3	0.050	0.070	1.27	1.77
B	0°	8°	cr	8°
